Airlift Nissan 370z Coupe/Roadster Performance Air Ride System 09-20 75521 /75621 Manual/3S/3P/3H

Style, heritage, and performance, the Nissan 370Z has it all. Including a 4×4 appearance when it comes to suspension….. Traditional lowering springs and coil-overs will help close up that wheel gap, but do you really want to sacrifice ride quality? With our complete air suspension you no longer have to give up your luxury ride to achieve the stance you are looking for. Not only will our full air suspension give your 370Z a much needed altitude adjustment, but you will be able to carve corners with the best of them!

To achieve a 3.57? drop up front we placed our progressive rate sleeve style air spring on top of a threaded body shock. Couple this smooth riding sleeve air spring with our 30 way damping adjustable monotube shock and with the push of a button and a twist of the damping knob you can go from plush luxury to a stiff race car feel. Not only do these parts perform, but they look just as good as they work. The shocks are covered in a smooth black chrome finish and the air springs are enhanced with bright red anodized end caps. It is almost a shame to hide these parts under your ride, but once you experience how well air suspension performs you will be glad you did.

For the rear we replace the OEM coil springs with our ultra plush double bellow air spring allowing the rear to drop 4.8?. To handle the damping duties, we replace the factory shocks with our threaded body, monotube, 30 way adjustable shocks to match the front for the ultimate in ride comfort and performance handling. With this complete air suspension, your ride will be ready for the show field as well as your favorite twisty road.

With our highly detailed instruction manuals suspension installation is a breeze and can be accomplished, with regular hand tools, in a matter of a few hours. The compressor system only requires 3 wires to hook up, so you do not have to worry about being caught in a wiring nightmare!

As the leader in air suspension products for over 60 years, Air Lift is committed to delivering quality parts that last. To ensure longevity for the customer, the key suspension components have been tested on a durability rig for over 1 million cycles, which equates to 100K miles. With a 1 year, unlimited mileage warranty, and the Air Lift Performance reputation for great customer service and technical support, you can purchase this kit with peace of mind. Ditch those coils and get to a new level of low!CHECK OUT THE VIDEO OF THIS KIT IN ACTION AT THE TRACK BELOW!!! YEAH BABY! PLUS THE V2 DIGITAL CONTROL SYSTEM DEMO VIDEOS!


Installation Details:

***Modifications Req. Front: MAY REQUIRE SHOCK TOWER INDENTING FOR AIR SPRING CLEARANCE.***
***Modifications Req. Rear: NONE
HERES THE SPECS!
Nissan 370 Coupe/Roadster also fits
Infiniti G37 (Sedan – 2009-2013), (Coupe – 2008-2013), (Convertible – 2009-2013)

**30-level damping adjustable monotube front struts and rear shocks
**Double bellows springs
**Anodized red aluminum accents
**Threaded lower mounts on front struts
**No cutting or chassis modification required
**Drop Front: 93mm/3.57" 80mm
**Drop Rear: 123mm/4.8
**Large range of damping adjustment
**Racetrack tuned handling
**All struts/shocks dyno tested & matched

SEE DOCUMENTS BELOW FOR INSTALL PDF'S

ALWAYS FREE SHIPPING IN 48 STATES WITH D2BD MOTORWERKS!

SEE BELOW FOR KIT SPECS:

Air Lift Performance 4-Way Manual Air Management System

Economical, simple and accurate control for all 4 wheels
Great for use with gauge and pillar pods
The system provides a maximum pressure of 200 psi
Features a VIAIR 100% duty cycle 16444 Compressor
1/4 air line for accurate and smooth adjustment
Attractive stainless steel switch plate

This Kit Includes:

Viair 444C Chrome Continuous Duty Compressor (200psi)
4 Gallon Raw Aluminum Tank
Air Line
Two Dual-Needle Pressure Gauges
4 Paddle Valves
Air Fittings
Air Line Cutter
Everything needed for installation!

Airlift 3P:

We asked ourselves: what would the ultimate air suspension be like? How would it combine an easy-to-use, reliable, and feature-rich system with powerful technology and beautiful design? Air Lift Performance 3P is the result of three years of development and testing. It is the most advanced product we have ever created.

Air Lift Performance 3P combines pressure-based control with the ability to add ride-height sensing technology with the upgrade to height sensors. While both types of air management have been utilized before, this is the first product to harness the benefits of both systems – instantly improving suspension control, performance, and vehicle ride flexibility.

This Kit Includes:

3H/3P digital controller
Integrated ECU + manifold
Advanced electrical wiring harness
60 ft. of 1/4th or 3/8th
Auto-draining inline water filter
All wiring, fuses, hardware, etc. required for installation
Your choice of lightweight aluminum air tank in raw or polished finish
All required tank fittings for installation
VIAIR 444C Air Compressor

2 YEAR WARRANTY

Airlift 3H:

We asked ourselves: what would the ultimate air suspension be like? How would it combine an easy-to-use, reliable, and feature-rich system with powerful technology and beautiful design? Air Lift Performance 3H is the result of three years of development and testing. It is the most advanced product we have ever created.

Air Lift Performance 3H combines pressure-based control with ride-height sensing technology. While both types of air management have been utilized before, this is the first product to harness the benefits of both systems – instantly improving suspension control, performance, and vehicle ride flexibility.

This Kit Includes:

3H/3P digital controller
Integrated ECU + manifold
Advanced electrical wiring harness
4 height sensors with wiring and mounting hardware
60 ft. of 1/4th or 3/8th air line

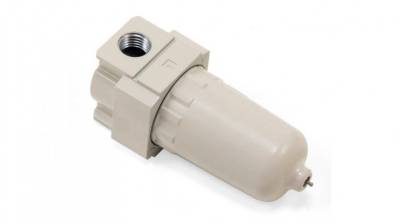

Auto-draining inline water filter
All wiring, fuses, hardware, etc. required for installation
Your choice of lightweight aluminum air tank in raw or polished finish
All required tank fittings for installation
VIAIR 444C Air Compressor

2 YEAR WARRANTY
