Airlift MK7 Slam Kit , A3, S3, TTS ,Beetle R, Golf , Golf R ,Golf GTI : 78562 / 78662 AP Manuel /P4/3P/3H
Airlift MK7 Slam Kit , A3, S3, TTS ,Beetle R, Golf , Golf R ,Golf GTI
For starters, we added our smooth-riding, double-bellows air spring to a threaded body monotube strut. 30 levels of damping adjustment allow you go from race car stiff to a comfortable ride with the twist of a knob. Top all that off with a T6061 aluminum adjustable camber plate covered in a sexy red hue. All this equates to performance handling, killer ride quality and the ability to slam the front end 4.8” from stock.
The rear suspension was treated to a double-bellows air spring in the place of the factory coil spring, giving you a 5.8” drop from original stock height. To help keep things under control, we have added monotube shocks with 30 levels of damping adjustability to match the front—for the ultimate in handling and ride comfort!
NOTE: In front, you need to make sure that the diameter of the bottom of the strut, where it gets clamped by the knuckle, is 55mm in diameter. If this measures out to 50mm, then you need to order part number 78548 .
Detailed instructions will help you get your VW MK7 slammed within a few short hours. If you have the ability to wire a stereo or swap out suspension parts, then you should have no problem installing this kit. However, to get maximum drop from the front suspension, frame modifications will need to be made by a competent fabricator. If you do run into a snag with the installation, our Air Lift Performance customer support team is top-notch, and can walk you through any questions you might have.
In order to bring to market the most durable air suspension possible, Air Lift Performance tortured the components of this kit to one million cycles (equivalent to approximately 100,000 miles) on their hydraulic test rig at temperatures from -30 deg F to 150 deg F. Couple this test lab work with thousands of miles of on-road testing—not to mention the one-year manufacturer’s warranty—and this is a kit you can count on to handle whatever the road throws down!
Isn’t it time you had the option of getting a killer lowered look without giving up ride quality or handling and having to worry about scraping your ride? Ditch the springs and get to an entire new level of low.
Model Fitment:
Available in both Performance Series & Slam Series
USA Models
2016-2018 Audi A3
(55mm front strut and independent rear suspension only)
2016-2018 Audi S3
(55mm front strut and independent rear suspension only)
2016-2017 Audi TTS
(55mm front strut and independent rear suspension only)
2016 Volkswagen Beetle R
(55mm front strut and independent rear suspension only)
2015-2018 Volkswagen Golf, All Engines
(55mm front strut and independent rear suspension only)
2015-2018 Volkswagen Golf GTI
(55mm front strut and independent rear suspension only)
2015-2018 Volkswagen Golf R
(55mm front strut and independent rear suspension only)
Looking for the MK7 50mm front, twist beam rear? 78548 TWIST BEAM
Kit Features: FRONT
Drop = 130mm/5.1
Durable double bellows springs
Performance valved SLAM struts
Anodized aluminum accents
Powdercoated gloss black steel brackets
Modifications Required:Frame modifications necessary to achieve maximum drop/travel. Trim front stabilizer end link threads to supplied nut to prevent chassis contacts.
Kit Features: REAR
Drop = 137mm/5.39
Durable double bellows springs
Anodized aluminum accents
Powdercoated gloss black steel brackets
NO SHOCKS INCLUDED
Modifications Required:None.
Included with Each Kit
Pair of performance valved SLAM struts
Braided stainless steel leader hoses
1/4? & 3/8? PTC fittings
All mounting hardware
Detailed instruction manual
Air Lift’s 1-year warranty and excellent customer support
Description
SEE BELOW FOR KIT SPECS:
Air Lift Performance 4-Way Manual Air Management System
Economical, simple and accurate control for all 4 wheels
Great for use with gauge and pillar pods
The system provides a maximum pressure of 175 psi
Features a VIAIR 100% duty cycle 444c Compressor
1/4 inch air line for accurate and smooth adjustment
Attractive stainless steel switch plate
This Kit Includes:
- Viair 444C Chrome Continuous Duty Compressor (200psi)
- 4 Gallon Polished Aluminum Tank
- Air Line
- Two Dual-Needle Pressure Gauges
- 4 Paddle Valves
- Air Fittings
- Air Line Cutter
- Everything needed for installation!
Airlift ALP4:
The ALP4 air management system redefines what’s possible for air suspension control, combining cutting-edge hardware with smarter, more seamless functionality. The ALP4 has improved upon everything you love about the 3p. This system features a compact, all-in-one manifold, which houses the ECU, solenoids, and pressure sensors, crafted from anodized black billet aluminum for durability and a sleek, show-ready appearance. Paired with a full-color touchscreen controller framed in anodized aluminum and equipped with four tactile physical buttons, this system offers immediate control for your presets, 4-corner manual control, axle adjustments, full air-out and other adjustable functions. With mobile app integration, ALP4 allows you to use and fine-tune your setup from anywhere, ensuring ultimate control.
This Kit Includes:
- Threaded port (1/4” FNPT) manifold
- Threaded port (1/4” FNPT) manifold
- Touch screen full-color LCD controller with physical buttons
- Main wiring harness
- USB-A to USB-C cable for controller-to-harness connection
- Manifold mounting hardware
- (6) 1/4” MNPT x 1/4” PTC fittings
- (1) SMC water-trap with manual drain and mounting strap
- (1) Air line cutter
- (60) 1/4” DOT air line
- Your choice of lightweight aluminum air tank in polished finish
- All required tank fittings for installation
- VIAIR 444C Air Compressor (select Chrome or Black)

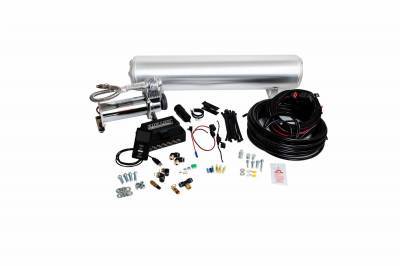

Airlift 3P:
We asked ourselves: what would the ultimate air suspension be like? How would it combine an easy-to-use, reliable, and feature-rich system with powerful technology and beautiful design? Air Lift Performance 3P is the result of three years of development and testing. It is the most advanced product we have ever created.
Air Lift Performance 3P combines pressure-based control with the ability to add ride-height sensing technology with the upgrade to height sensors. While both types of air management have been utilized before, this is the first product to harness the benefits of both systems ? instantly improving suspension control, performance, and vehicle ride flexibility.
This Kit Includes:
- 3H/3P digital controller
- Integrated ECU + manifold
- (6) 1/4” MNPT x 1/4” PTC fittings
- (1) SMC water-trap with manual drain and mounting strap
- (1) Air line cutter
- (60ft) 1/4th or 3/8th DOT air line
- Advanced electrical wiring harness
- All wiring, fuses, hardware, etc. required for installation
- Your choice of lightweight aluminum air tank in polished finish
- All required tank fittings for installation
- VIAIR 444C Air Compressor (select Chrome or Black)

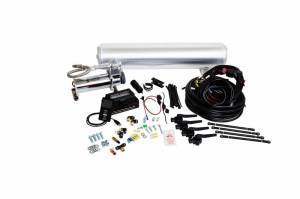

Airlift 3H:
We asked ourselves: what would the ultimate air suspension be like? How would it combine an easy-to-use, reliable, and feature-rich system with powerful technology and beautiful design? Air Lift Performance 3H is the result of three years of development and testing. It is the most advanced product we have ever created.
Air Lift Performance 3H combines pressure-based control with ride-height sensing technology. While both types of air management have been utilized before, this is the first product to harness the benefits of both sytems ? instantly improving suspension control, performance, and vehicle ride flexibility.
This Kit Includes:
- 3H/3P digital controller
- Integrated ECU + manifold
- (6) 1/4” MNPT x 1/4” PTC fittings
- (1) SMC water-trap with manual drain and mounting strap
- (1) Air line cutter
- (60ft) 1/4th or 3/8th DOT air line
- Advanced electrical wiring harness
- 4 height sensors with wiring and mounting hardware
- All wiring, fuses, hardware, etc. required for installation
- Your choice of lightweight aluminum air tank in polished finish
- All required tank fittings for installation
- VIAIR 444C Air Compressor (select Chrome or Black)
