Airlift Toyota Supra 19-UP Performance Air Suspension System : 78587 / 78687 Manual/P4/3P/3H
New Toyota Supra Air Suspension
When engineering the front kit for the Supra, our engineers paired double-bellow air springs with threaded-monotube struts. Offering 30-levels of damping adjustment and added camber plates that allow you to dial in up to 3-degrees of negative camber, your air suspension is completely customizable to your unique performance needs.
With the freedom an air suspension offers, you’ll be able to drop your Supra front down 83mm (3.3”) for the ultimate low look, while being able to raise it up at any time, in order to avoid those pesky lowered car problems, like steep driveways, speedbumps, and potholes.
In the rear, it’s a similar setup, with double-bellow air springs, threaded-body shocks, equipped with 30 levels of damping adjustability, all combined to drop you 104mm (4.1”) from stock height.
Each Air Lift Performance kit comes with a detailed and fully illustrated instruction manual, helping you to get your car slammed in only a matter of hours. If you can install a stereo, swap out suspension parts, and own basic hand tools, you’ll have no problem getting your air
suspension installed.
To ensure the longevity of the kit, all key suspension components have been tested on our hydraulic test rig for more than one million cycles, simulating around 100,000 miles, then tortured at extreme temperatures from -30º F to 150º F. Add that to our standard one-year, unlimited-mileage warranty – not to mention the Air Lift Performance reputation for exceptional customer service and technical support – and you can purchase this kit with peace of mind. Ready to get the stance you’ve been dreaming of? Start living your #lifeonair
FRONT KIT SPECS
83mm/3.3" Drop
Proprietary Bolt-in Camber Plates
30-Level Adjustable Damping
Double Bellows Progressive Rate Springs
High Performance Monotube Shocks
No Modifications Necessary for Installation
Braided Stainless Steel Leader Air Hoses
Threaded, Adjustable Shocks Mounts
REAR KIT SPECS
104mm/4.1" Drop
30-Level Adjustable Damping
Double Bellows Progressive Rate Springs
High Performance Monotube Shocks
Rubber Upper Mounts
No Modifications Necessary for Installation
Threaded, Adjustable Shocks Mounts
Description
SEE BELOW FOR KIT SPECS:

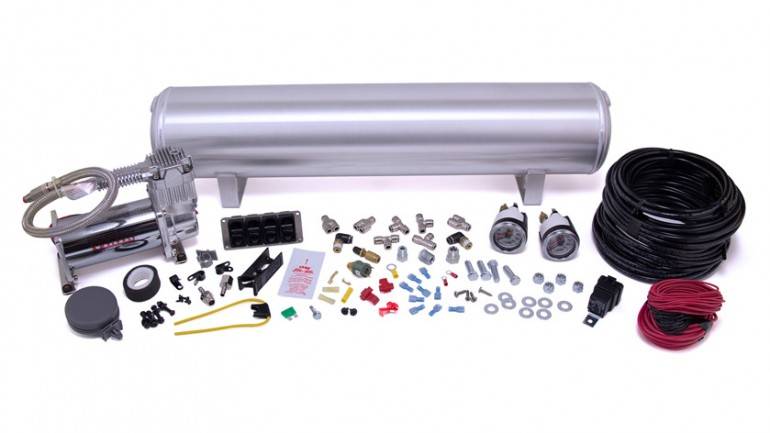

Air Lift Performance 4-Way Manual Air Management System
Economical, simple and accurate control for all 4 wheels
Great for use with gauge and pillar pods
The system provides a maximum pressure of 175 psi
Features a VIAIR 100% duty cycle 444c Compressor
1/4 inch air line for accurate and smooth adjustment
Attractive stainless steel switch plate
This Kit Includes:
- Viair 444C Chrome Continuous Duty Compressor (200psi)
- 4 Gallon Polished Aluminum Tank
- Air Line
- Two Dual-Needle Pressure Gauges
- 4 Paddle Valves
- Air Fittings
- Air Line Cutter
- Everything needed for installation!
Airlift ALP4:
The ALP4 air management system redefines what’s possible for air suspension control, combining cutting-edge hardware with smarter, more seamless functionality. The ALP4 has improved upon everything you love about the 3p. This system features a compact, all-in-one manifold, which houses the ECU, solenoids, and pressure sensors, crafted from anodized black billet aluminum for durability and a sleek, show-ready appearance. Paired with a full-color touchscreen controller framed in anodized aluminum and equipped with four tactile physical buttons, this system offers immediate control for your presets, 4-corner manual control, axle adjustments, full air-out and other adjustable functions. With mobile app integration, ALP4 allows you to use and fine-tune your setup from anywhere, ensuring ultimate control.
This Kit Includes:
- Threaded port (1/4” FNPT) manifold
- Threaded port (1/4” FNPT) manifold
- Touch screen full-color LCD controller with physical buttons
- Main wiring harness
- USB-A to USB-C cable for controller-to-harness connection
- Manifold mounting hardware
- (6) 1/4” MNPT x 1/4” PTC fittings
- (1) SMC water-trap with manual drain and mounting strap
- (1) Air line cutter
- (60) 1/4” DOT air line
- Your choice of lightweight aluminum air tank in polished finish
- All required tank fittings for installation
- VIAIR 444C Air Compressor (select Chrome or Black)

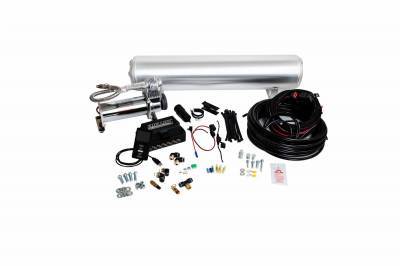

Airlift 3P:
We asked ourselves: what would the ultimate air suspension be like? How would it combine an easy-to-use, reliable, and feature-rich system with powerful technology and beautiful design? Air Lift Performance 3P is the result of three years of development and testing. It is the most advanced product we have ever created.
Air Lift Performance 3P combines pressure-based control with the ability to add ride-height sensing technology with the upgrade to height sensors. While both types of air management have been utilized before, this is the first product to harness the benefits of both systems ? instantly improving suspension control, performance, and vehicle ride flexibility.
This Kit Includes:
- 3H/3P digital controller
- Integrated ECU + manifold
- (6) 1/4” MNPT x 1/4” PTC fittings
- (1) SMC water-trap with manual drain and mounting strap
- (1) Air line cutter
- (60ft) 1/4th or 3/8th DOT air line
- Advanced electrical wiring harness
- All wiring, fuses, hardware, etc. required for installation
- Your choice of lightweight aluminum air tank in polished finish
- All required tank fittings for installation
- VIAIR 444C Air Compressor (select Chrome or Black)

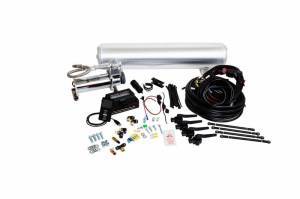

Airlift 3H:
We asked ourselves: what would the ultimate air suspension be like? How would it combine an easy-to-use, reliable, and feature-rich system with powerful technology and beautiful design? Air Lift Performance 3H is the result of three years of development and testing. It is the most advanced product we have ever created.
Air Lift Performance 3H combines pressure-based control with ride-height sensing technology. While both types of air management have been utilized before, this is the first product to harness the benefits of both sytems ? instantly improving suspension control, performance, and vehicle ride flexibility.
This Kit Includes:
- 3H/3P digital controller
- Integrated ECU + manifold
- (6) 1/4” MNPT x 1/4” PTC fittings
- (1) SMC water-trap with manual drain and mounting strap
- (1) Air line cutter
- (60ft) 1/4th or 3/8th DOT air line
- Advanced electrical wiring harness
- 4 height sensors with wiring and mounting hardware
- All wiring, fuses, hardware, etc. required for installation
- Your choice of lightweight aluminum air tank in polished finish
- All required tank fittings for installation
- VIAIR 444C Air Compressor (select Chrome or Black)
