Tesla Model 3 AWD 17-24 Performance Air Ride Suspension : 78102 / 78701 AP Manual/P4/3P/3H
TESLA MODEL 3 AWD AIR SUSPENSION
Our engineers started by giving your Tesla Model 3 the maximum drop without sacrificing performance – getting you down 112mm (4.4”) from stock. But simply getting you low is not enough for Air Lift Performance. Our kits are also about achieving the versatility that the common coilover cannot, eliminating classic lowered-car problems, like bottoming out, with the touch of a button. We pride ourselves on making sure that every Tesla Model 3 kit that we build not only provides a great ride, but also handles the curves like it should.
In front, the Tesla Model 3 kit features our double-bellow air springs over monotube, threaded-body shocks, which provide a comfortable ride and great body support during cornering or braking. With 30 levels of damping adjustability, the shocks allow for a huge range of customization, with the ability to go from super soft up to a stiff performance setup.
As the leader in air suspension products for 70 years, Air Lift Company and its Performance division is committed to delivering quality parts that last. To ensure the highest quality, longevity, and customer satisfaction, the key suspension components have all been torture-tested to 1 million cycles on our in-house hydraulic test rig at temperatures ranging from -30°F to 150°F. With a one-year, unlimited-mileage warranty – not to mention Air Lift Performance’s best-in-class customer service and technical support, should you run into any snags in the installation process – you can purchase this kit with peace of mind.
Are you ready to get low and get noticed? Start living your #lifeonair
FRONT KIT SPECS:
112mm/4.4" Drop
30-Level Adjustable Damping
Double Bellows Progressive Rate Springs
High Performance Monotube Shocks
Rubber Upper Mounts
Braided Stainless Steel Leader Air Hoses
Threaded, Adjustable Shocks Mounts
REAR KIT SPECS:
45mm/5.7" Drop
30-Level Adjustable Damping
Double Bellows Progressive Rate Springs
High Performance Monotube Shocks
No Modifications Necessary for Installation
Roll Plates
Threaded, Adjustable Shocks Mounts
MODEL FITMENT :
2017-2022 Tesla Model 3 (RWD)
INSTALL DETAILS :
Modifications Req. Front: NONE
Modifications Req. Rear: NONE
Description

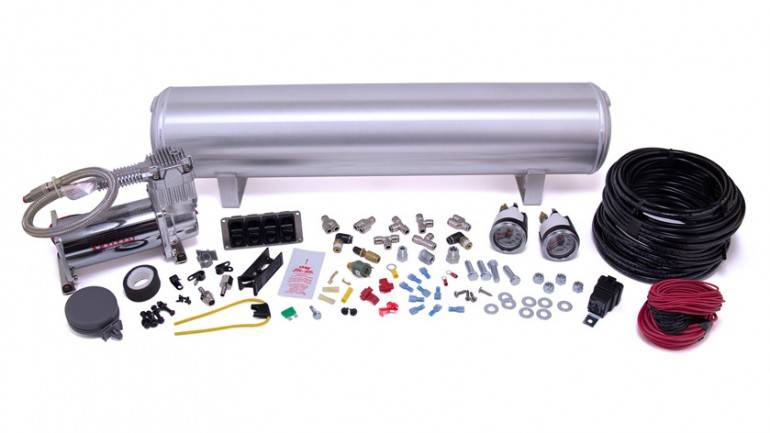

Air Lift Performance 4-Way Manual Air Management System
Economical, simple and accurate control for all 4 wheels
Great for use with gauge and pillar pods
The system provides a maximum pressure of 200 psi
Features a VIAIR 100% duty cycle 16444 Compressor
1/4 air line for accurate and smooth adjustment
Attractive stainless steel switch plate
This Kit Includes:
Viair 444C Chrome Continuous Duty Compressor (200psi)
4 Gallon Raw Aluminum Tank
Air Line
Two Dual-Needle Pressure Gauges
4 Paddle Valves
Air Fittings
Air Line Cutter
Everything needed for installation!
Airlift ALP4:
The ALP4 air management system redefines what’s possible for air suspension control, combining cutting-edge hardware with smarter, more seamless functionality. The ALP4 has improved upon everything you love about the 3p. This system features a compact, all-in-one manifold, which houses the ECU, solenoids, and pressure sensors, crafted from anodized black billet aluminum for durability and a sleek, show-ready appearance. Paired with a full-color touchscreen controller framed in anodized aluminum and equipped with four tactile physical buttons, this system offers immediate control for your presets, 4-corner manual control, axle adjustments, full air-out and other adjustable functions. With mobile app integration, ALP4 allows you to use and fine-tune your setup from anywhere, ensuring ultimate control.
This Kit Includes:
- Threaded port (1/4” FNPT) manifold
- Threaded port (1/4” FNPT) manifold
- Touch screen full-color LCD controller with physical buttons
- Main wiring harness
- USB-A to USB-C cable for controller-to-harness connection
- Manifold mounting hardware
- (6) 1/4” MNPT x 1/4” PTC fittings
- (1) SMC water-trap with manual drain and mounting strap
- (1) Air line cutter
- (60) 1/4” DOT air line
- Your choice of lightweight aluminum air tank in polished finish
- All required tank fittings for installation
- VIAIR 444C Air Compressor (select Chrome or Black)

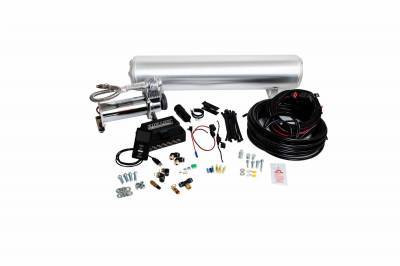

Airlift 3P:
We asked ourselves: what would the ultimate air suspension be like? How would it combine an easy-to-use, reliable, and feature-rich system with powerful technology and beautiful design? Air Lift Performance 3P is the result of three years of development and testing. It is the most advanced product we have ever created.
Air Lift Performance 3P combines pressure-based control with the ability to add ride-height sensing technology with the upgrade to height sensors. While both types of air management have been utilized before, this is the first product to harness the benefits of both systems – instantly improving suspension control, performance, and vehicle ride flexibility.
This Kit Includes:
3H/3P digital controller
Integrated ECU + manifold
Advanced electrical wiring harness
60 ft. of 1/4th or 3/8th
Auto-draining inline water filter
All wiring, fuses, hardware, etc. required for installation
Your choice of lightweight aluminum air tank in raw or polished finish
All required tank fittings for installation
VIAIR 444C Air Compressor
2 YEAR WARRANTY

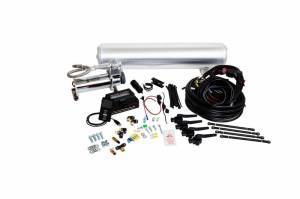

Airlift 3H:
We asked ourselves: what would the ultimate air suspension be like? How would it combine an easy-to-use, reliable, and feature-rich system with powerful technology and beautiful design? Air Lift Performance 3H is the result of three years of development and testing. It is the most advanced product we have ever created.
Air Lift Performance 3H combines pressure-based control with ride-height sensing technology. While both types of air management have been utilized before, this is the first product to harness the benefits of both systems – instantly improving suspension control, performance, and vehicle ride flexibility.
This Kit Includes:
3H/3P digital controller
Integrated ECU + manifold
Advanced electrical wiring harness
4 height sensors with wiring and mounting hardware
60 ft. of 1/4th or 3/8th air line
Auto-draining inline water filter
All wiring, fuses, hardware, etc. required for installation
Your choice of lightweight aluminum air tank in raw or polished finish
All required tank fittings for installation
VIAIR 444C Air Compressor
2 YEAR WARRANTY
